    Contract Honing Services

    Engis now offers contract precision bore honing services for our customers as well as complete turnkey systems. This service includes short runs for prototype purposes, all the way through large ongoing production capabilities.

    Upload Your Drawings Here!



    Our Capabilities

    Engis systems, designed and built in the USA, are well-known for achieving the most precise bore geometry in the industry. Depending upon the specific application, the following bore precision is possible:

    • Size control within 1um (0.000040”)
    • Roundness down to 0.1um (0.000004”)
    • Cylindricity down to 0.5um (0.000020”)
    • Surface finishes down to 0.1 µm / 4 µin Ra in most materials.
    • Special surface finish requirements, such as Rz, Rt, plateau, bearing surfaces (Rvk, Rpk, Rk) and specific cross hatch patterns can be produced.

    Bore Sizes and Types:

    • Bore Diameters from .045” up to 30”
    • Bore Lengths up to 36”
    • Through bores
    • Blind bores
    • Dual diameter bores (step bores) with concentricity requirements
    • Seats

    Metrology:

    The Engis Technology Center houses multiple labs with state-of-the-art metrology capabilities. The following is a sample of some of the available equipment:

    • Mitutoyo RA-2200 Series Roundness/Cylindricity Machine
    • Taylor Hobson Talyrond
    • Mitutoyo CRYSTA-Apex S 700 Series CMM
    • Mitutoyo Surftest SJ-400 Profilometer
    • Multiple Air Gages (Edmunds, Mahr Federal, Western Gage)
    • S.E.M.
    • 3D Microscopes
    • Bore Scopes
    • Diatest Bore Gages

         metrology equipment (1)                                             metrology engis.com

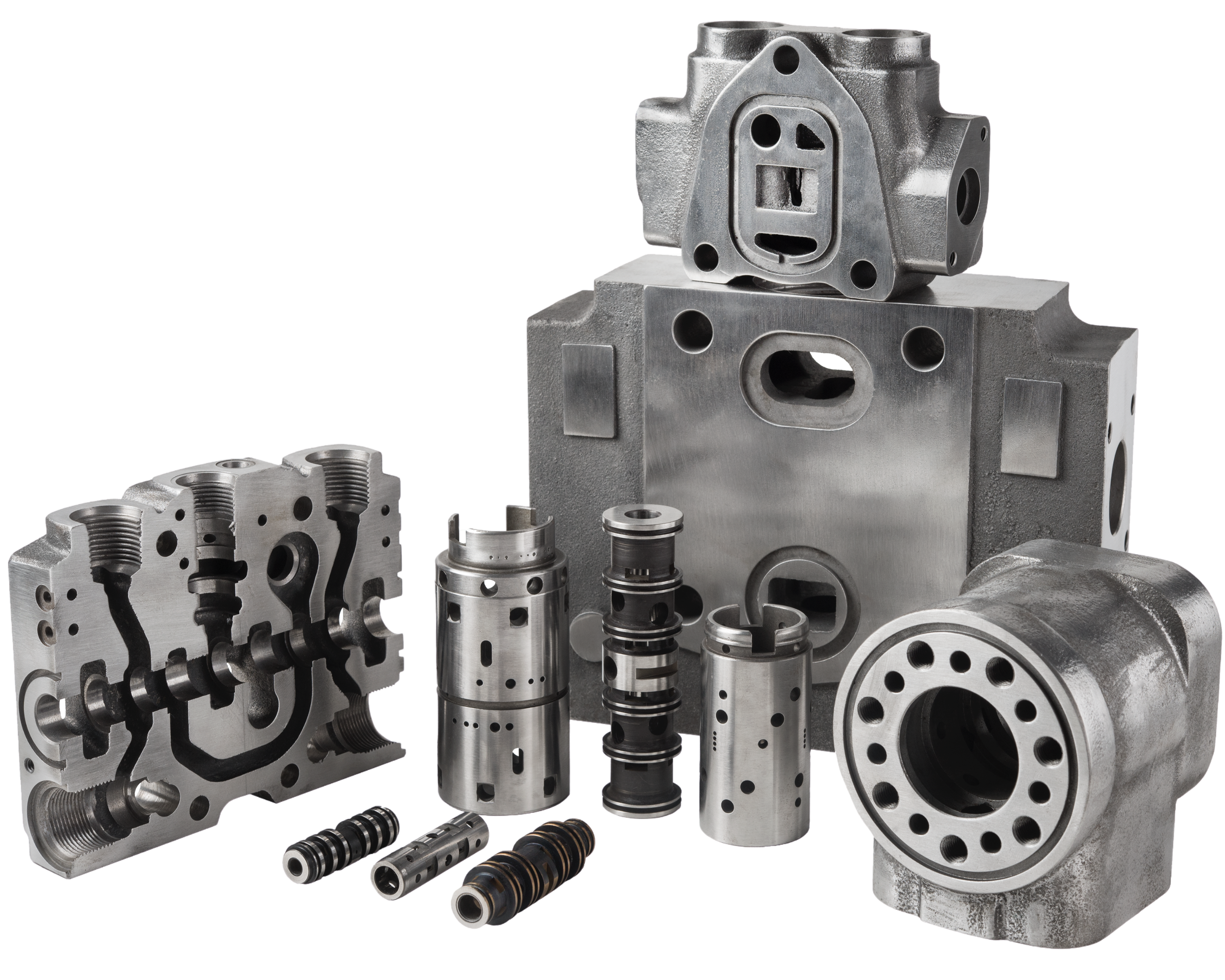

    Engis production honing finishes parts used in many industries:

    • Automotive
    • Aerospace
    • Ceramics
    • Firearms
    • Hydraulics
    • Medical
    • Marine
    • Small Engine
    • Specialty Applications
    Connect  with Engis Bore Finishing team for your Contract Honing
    • Over 75 years of experience
    • Complete Line of Single Pass Bore Finishing and Honing Capabilities
    • Fast Turnaround Time
    • Lower Cost Per Part
    • ISO 9001 Certified
    • Proudly Made in the U.S.A.

    Engis will work with you to develop new projects that require finished bores so you can supply parts to your customer and help you get the project and grow your business.
