Engis's Hyprez® EAG Model

Fully Automated Grinding System



EAGgrinders2-1
Engis's Hyprez® EAG Model
Our state-of-the-art offering, with fully automatic enhanced multi-spindle grinding system (Engis's Hyprez® EAG Model),
provides a low capital and operating expenditure solution for high precision wafering, giving an economic benefit to customers.
The machine includes non-contact, in-situ thickness measurement techniques for targeted wafer thickness control.
The aim is to produce ultra-flat wafers in a fully automatic cassette-to-cassette operation for grinding SiC wafers on both sides
and to develop tailored 'Grind-to-CMP Processes' for all wafers sliced by any wafering techniques.


PUBLICATIONS

UPCOMING EVENTS

     EAG-28SAND                   EAG-28DANX

Automated-Machine3045 copy
3040_1
3040_2
3040_4
3040_6
3040_9

  Fully automatic dual spindle grinder
 Rough and fine grinding with two spindles
 In-process non contact thickness measurement or contact gauge
 Stiff cast frame structure
 PC-based machine
SECS/GEM interface protocol
 Real-time data monitoring

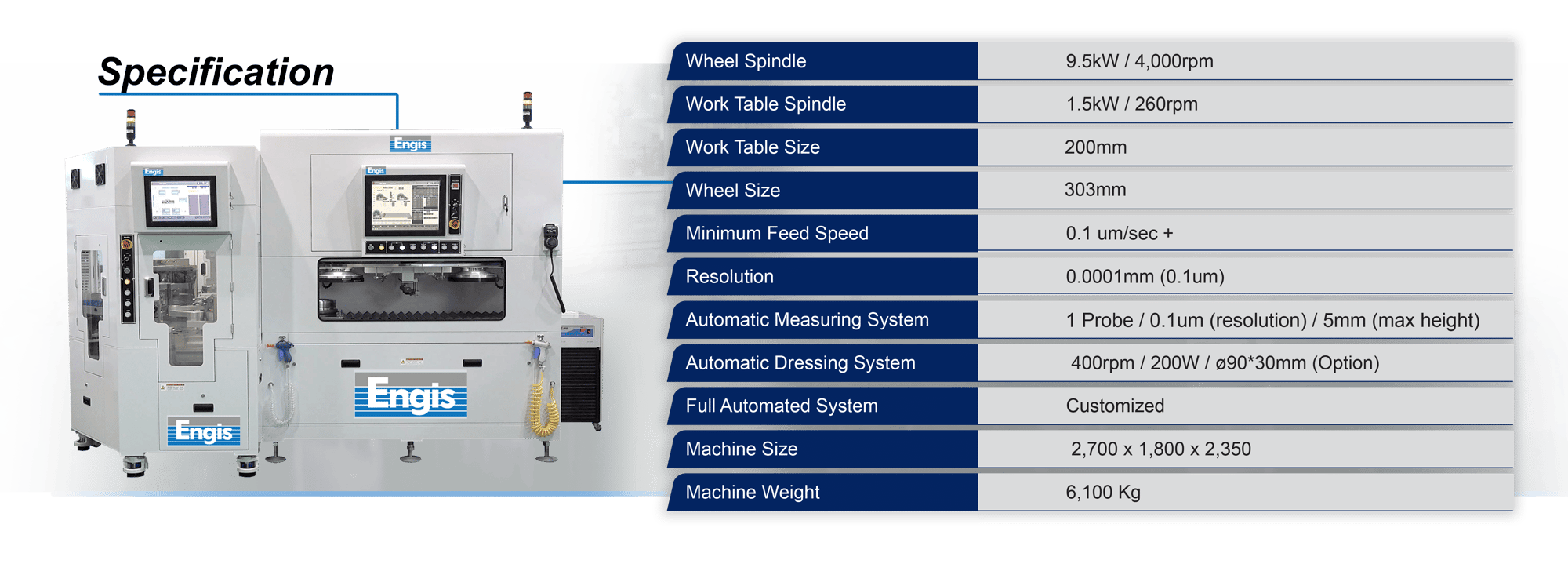

Tech2_3045V7

Download Spec Sheet Now!



ENGIS'S HYPREZ® EAG MODEL OVERVIEW


TechData13045v5

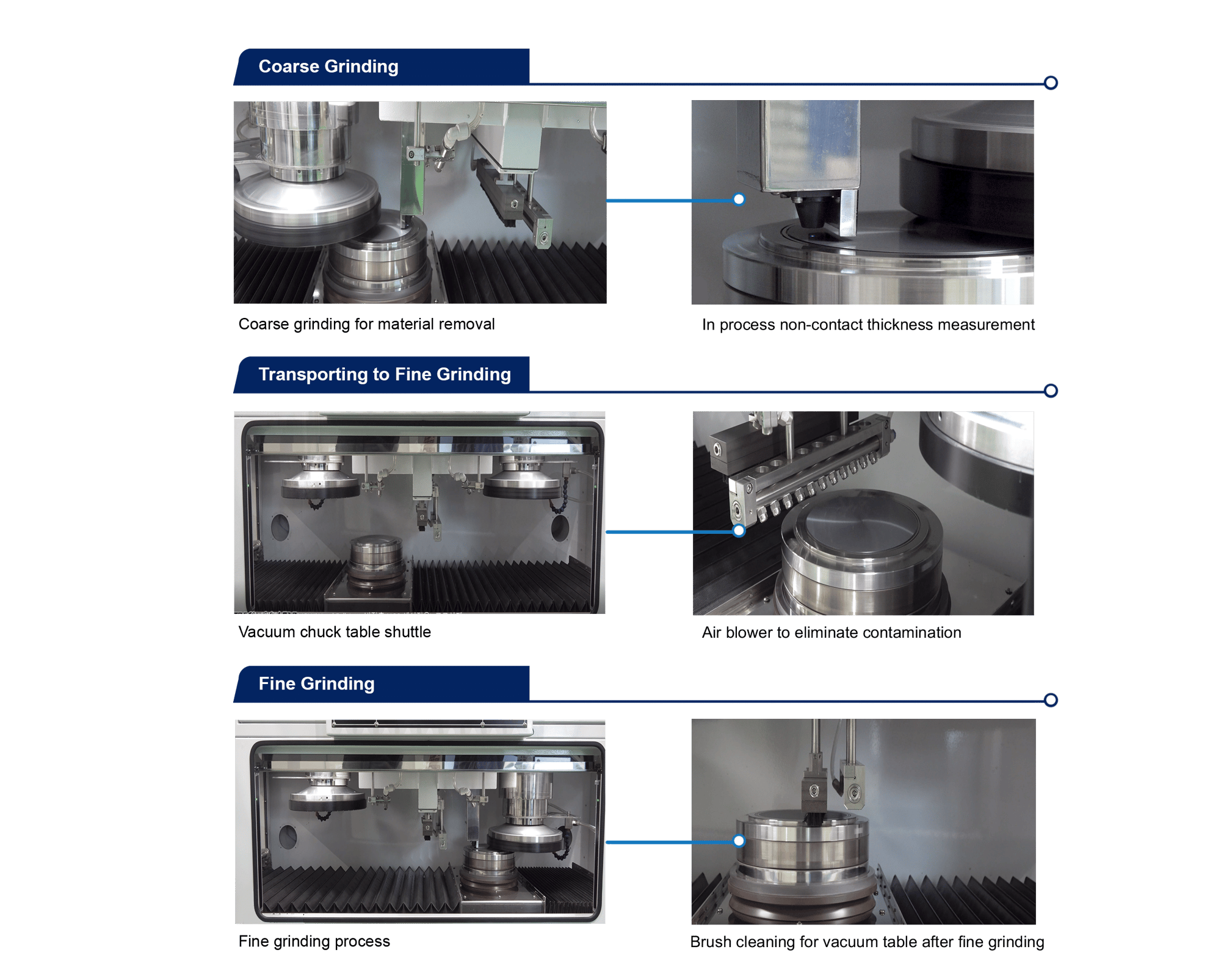

PROCESS OVERVIEW


ProcessOverviewAll-1



PROCESS AUTOMATION

ProcessAutomationV3-1

OPERATION SCREEN


OperationScreen3045 copy
